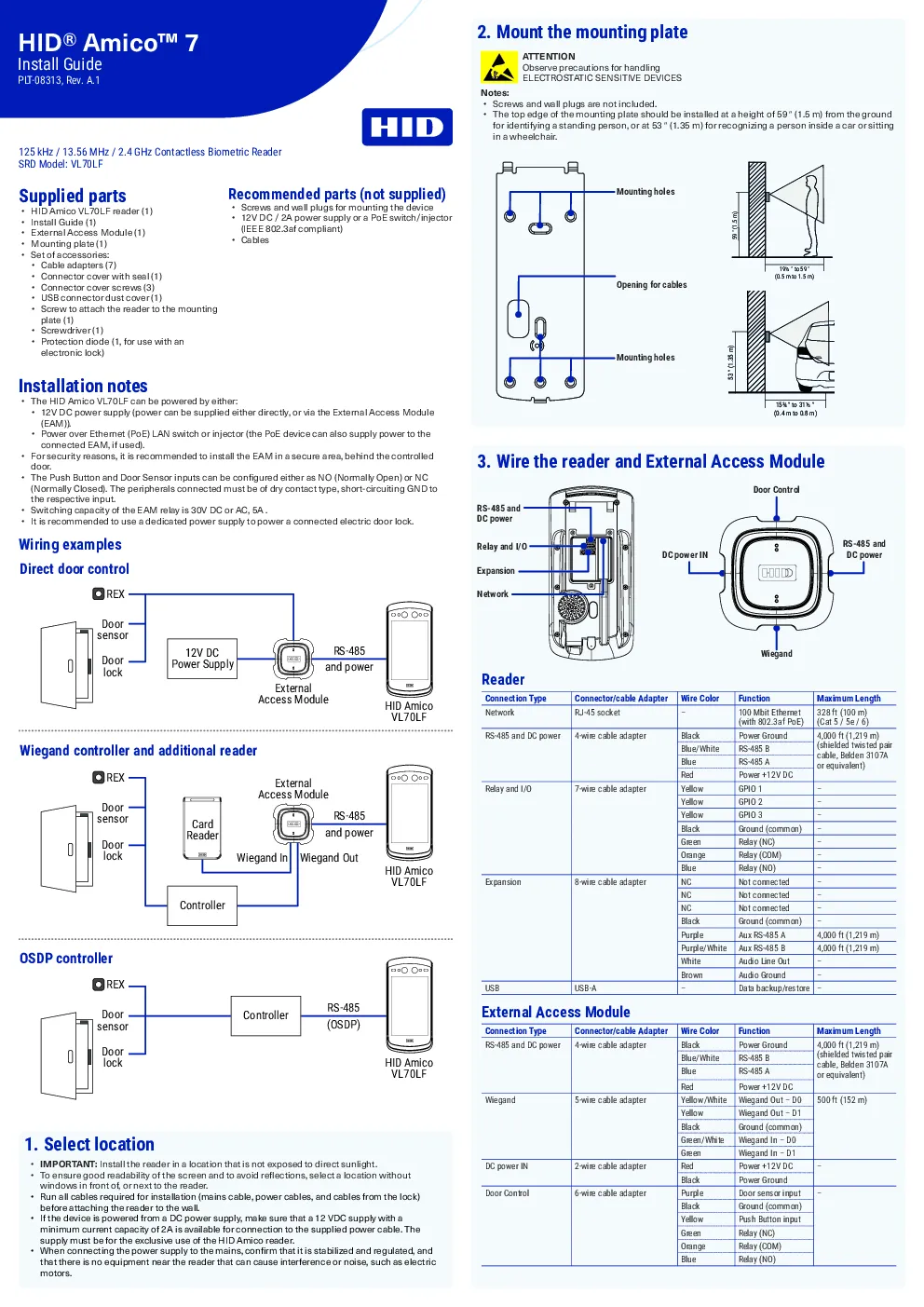

HID Amico 7 安装指南

ATTENTIONObserve precautions for handling PLT-08313, Rev. A.1 ELECTROSTATIC SENSITIVE DEVICES Notes:•Screws and wall plugs are not included. •The top edge of the mounting plate should be installed at a height of 59 ″ (1.5 m) from the groundfor identifying a standing person, or at 53 ″ (1.35 m) for recognizing a person inside a car or sittingin a wheelchair. •Screws and wall plugs for mounting the device•12V DC / 2A power supply or a PoE switch/injector(IEEE 802.3af compliant)•Cables •HID Amico VL70LF reader (1)•Install Guide (1)•External Access Module (1)•Mounting plate (1)•Set of accessories:•Cable adapters (7)•Connector cover with seal (1)•Connector cover screws (3)•USB connector dust cover (1)•Screw to attach the reader to the mountingplate (1)•Screwdriver (1)•Protection diode (1, for use with an •The HID Amico VL70LF can be powered by either:•12V DC power supply (power can be supplied either directly, or via the External Access Module(EAM)).•Power over Ethernet (PoE) LAN switch or injector (the PoE device can also supply power to the •For security reasons, it is recommended to install the EAM in a secure area, behind the controlleddoor.•The Push Button and Door Sensor inputs can be configured either as NO (Normally Open) or NC(Normally Closed). The peripherals connected must be of dry contact type, short-circuiting GND tothe respective input.•Switching capacity of the EAM relay is 30V DC or AC, 5A .•It is recommended to use a dedicated power supply to power a connected electric door lock. 3. Wire the reader and External Access Module 1. Select location •IMPORTANT:Install the reader in a location that is not exposed to direct sunlight.•To ensure good readability of the screen and to avoid reflections, select a location withoutwindows in front of, or next to the reader. •Run all cables required for installation (mains cable, power cables, and cables from the lock)before attaching the reader to the wall.•If the device is powered from a DC power supply, make sure that a 12 VDC supply with aminimum current capacity of 2A is available for connection to the supplied power cable. Thesupply must be for the exclusive use of the HID Amico reader. 4. Secure the reader to the mounting plate The quality and reliability of a facial recognition system is strongly dependent on the quality of theimages acquired during the enrollment stage. Please take extra care of this critically importantprocess and follow these basic rules: •Do not wear clothes or accessories that hide the important regions of the face, for examplesunglasses, masks, caps, or scarves.•Use neutral facial expressions.•Position yourself approximately 50cm (20″) in front of the device, in the center of camera field of To trigger the enrollment from the on-screen administration menu, navigate toMenu>Enroll>Usersand tapAdd. Enter the user information and tap thefaceicon in theCredentialssection. Thedevice will guide you to the right position and perform the scanning. Once completed, tapOKtosave the newly enrolled biometric template to the database. 8. User identification In idle mode, the reader automatically detects a personin front of the device and performs the identification. Theidentification result is displayed on the screen. The recommended distance between the device and userduring identification is 19¾ ″ to 55 ″ (0.5m to 1.4m). LF (125 kHz) cards(for example, HID Prox, EM, Indala)Present at the bottom left corner HF (13.56 MHz) cards(for example HID iCLASS, Seos,MIFARE DESFire)Present at the top, in front of the cameras Mobile credentials using NFCPresent at the top, in front of the cameras Mobile credentials using Bluetooth Low EnergyNo specific positioning needed (works at a distance) 3.Latch the reader. 1.Power the reader. The readerwill beep and start booting, withprogress displayed on the screen. All settings of the HID Amico VL70LF reader can be configured using the touchscreen to accessthe administration menu. Alternatively, if the reader is connected to a network or directly to a PCvia Ethernet, it can be configured using a web browser. For more information, see theHID AmicoBiometric Reader User Guide(PLT-07752). TapMenuon the touchscreen. Authentication is not initially required to access the administrationmenu. Once a user is enrolled with admin privileges, access to the administration menu is restrictedto only users with admin privileges. The default IP address of the device is 192.168.0.129. To change this default setting: 1.Navigate toMenu>Settings>Network>Network Properties.2.Set a static or dynamic IP address, as required:•Dynamic IP address assignment (DHCP)- select theDHCPoption. If the device is connectedto a network with a DHCP server, the server sets the network parameters automatically. The IPaddress and other network parameters the reader received will be shown on this screen. Note:TapNextto display additional screens with further information. 1.Use a web browser to navigate to the default web int
