HID M1透明网关快速入门指南

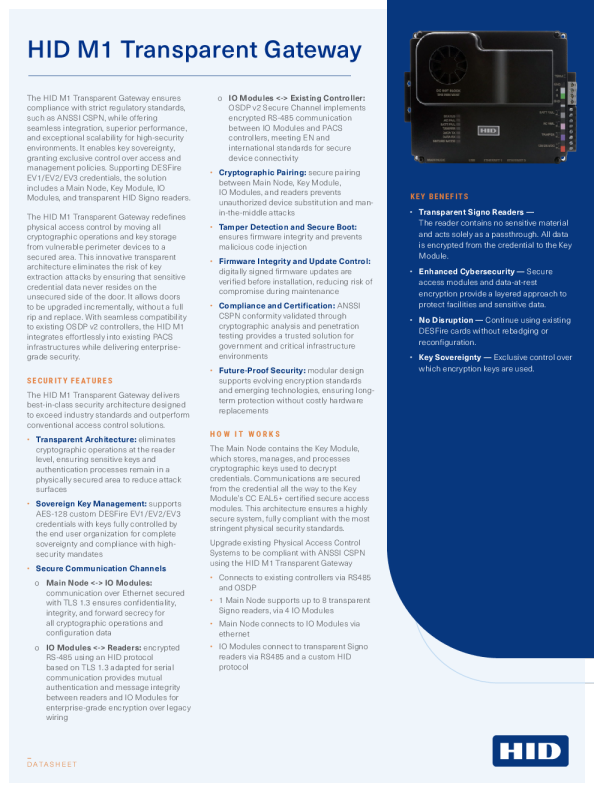

1.Prepare the Key Moduleusing HID Linq Key Manager to configure, provision, andinject encryption keys.2.Install the Key Moduleinto the Main Node.3.Mount the Main Node and IO Modulesin a secure area.4.Connect the IO Modulesto the existing controller.5.Set the DIP switcheson both the Main Node and IO Modules to admin mode.6.Upgrade existing Signo readersusing the HID Reader Manager™ app, or installnew readers compatible with HID M1.7.Connect the readersto the IO Modules.8.Power on all devicesand access the admin interface via a web browser.9.Configure network settings, pair devices, and enter the OSDP settings for theexisting controller.10.Test the systemusing a credential programmed with the injected keys. If issuesarise, review the logs in the Main Node admin interface. HID M1 Transparent GatewayQuick Start Guide This quick start guide will help you set up HID®M1 Transparent Gateway. The solution is installed between the existing access control panel and HID Signo™readers. HID M1 enables sovereign keys and a transparent architecture for access controlsystems and supports authentication of DESFire EV1/2/3 credentials. Solution components•Main Node:The main processing unit, installed in a secure area. •Key Module:Stores encryption keys and is housed within the Main Node.•IO Module:Connects the Main Node, readers, and the controller.•Transparent HID Signo reader:Reads and transmits encrypted card data. Scan the QR code or visit the link to view the HID M1 Transparent Gateway Installationand Specifications (PLT-07917). Regulatory Specifications ULUL Recognized Component (UL294) All National and local Electrical codes apply. This equipment is intended to be powered from a limited power source output, of a UL294Certified Power Supply. Install in accordance with NFPA70 (NEC) Local Codes, and authorities having jurisdiction.Follow all National and Local Codes. Changes or modifications not expressly approved by the party responsible for compliancecould void the user’s authority to operate the equipment. FCCClass A Digital Devices FCC Compliance Statement: Dec 11This equipment has been tested and found to comply with the limits for a Class A digitaldevice, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in acommercial environment. This equipment generates, uses, and can radiate radio frequencyenergy and, if not installed and used in accordance with the instruction manual, may causeharmful interference to radio communications. Operation of this equipment in a residential CE MarkingHID Global hereby declares that HID M1, consisting of a Main Node, Key Module, and IO Module are in compliance with the essential requirements and other relevant provisions ofDirective 2014/53/EU. HID Global declaran por la presente que HID M1, compuesto por un Nodo Principal, Módulode Llave y Módulo 10, cumple con los requisitos esenciales y otras disposiciones relevantesde la Directiva 2014/53/EU. HID Global déclarent par la présente que HID M1, composé d’un Nœud Principal, d’unModule Clé et d’un Module 10, est conforme aux exigences essentielles et autresdispositions pertinentes de la Directive 2014/53/EU. A HID Global declaram que o HID M1, composto por um Nodo Principal, Módulo de Chavee Módulo IO, está em conformidade com os requisitos essenciais e outras disposiçõesrelevantes da Diretiva 2014/53/EU. HID Global erklären hiermit, dass der HID M1, bestehend aus einem Hauptknoten, einemSchlüsselsystemmodul und einem IO-Modul, den grundlegenden Anforderungen undanderen relevanten Bestimmungen der Richtlinie 2014/53/EU entspricht. HID Global dichiarano che HID M1, composto da un Nodo Principale, Modulo Chiave eModulo 10, è conforme ai requisiti essenziali e ad altre disposizioni pertinenti della Direttiva2014/53/EU. Download copies of the Radio Equipment Directive Declaration of Conformity (DoC) at:https://www.hidglobal.com/certifications
