eProx MCM模块

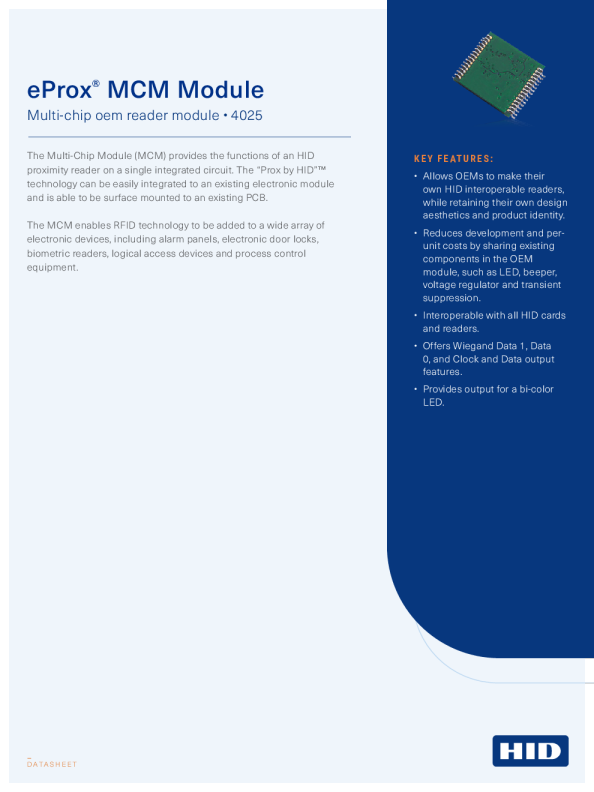

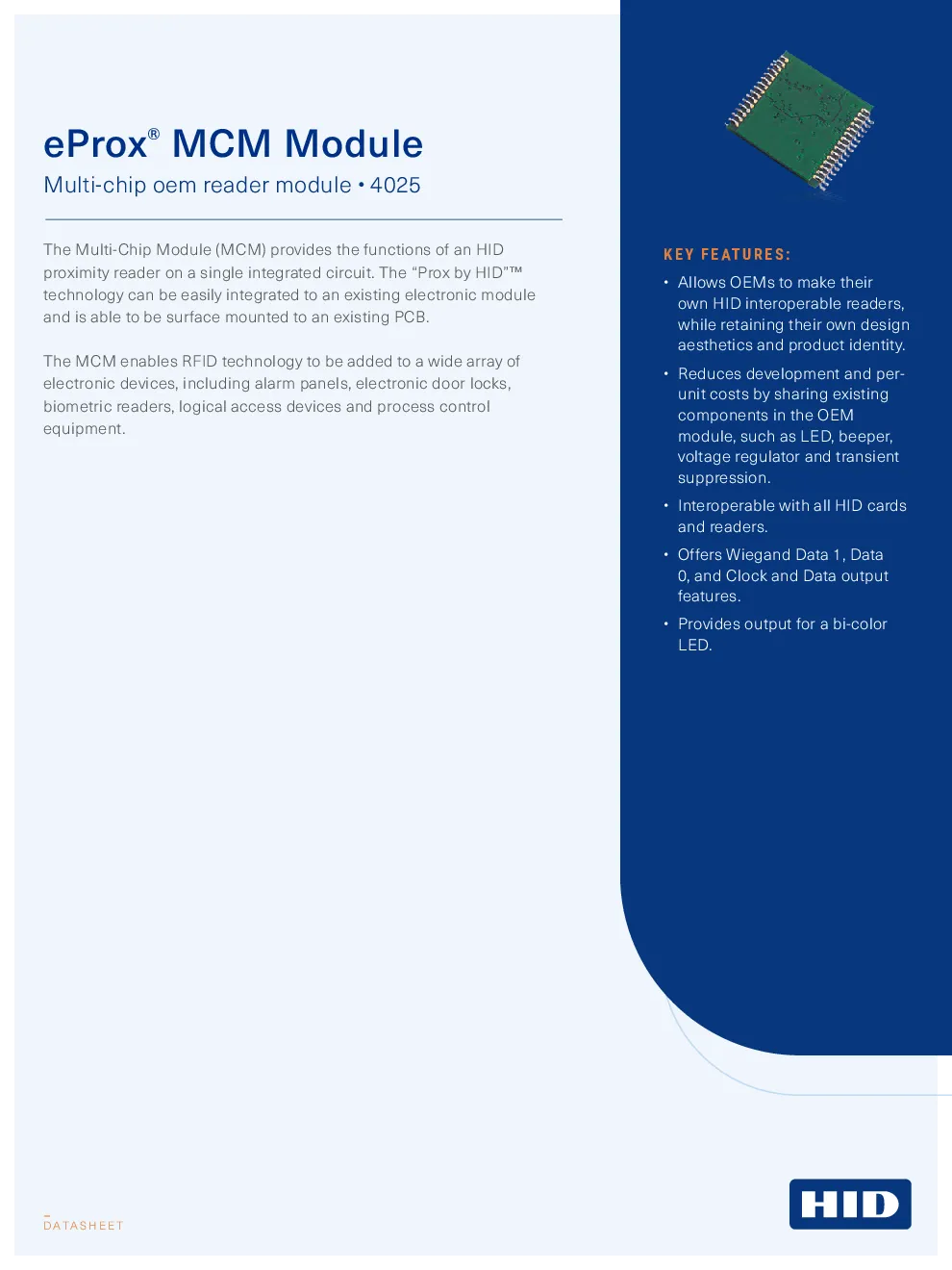

The Multi-Chip Module (MCM) provides the functions of an HIDproximity reader on a single integrated circuit. The “Prox by HID”™technology can be easily integrated to an existing electronic module K E Y F E AT U R E S : •Allows OEMs to make theirown HID interoperable readers,while retaining their own design The MCM enables RFID technology to be added to a wide array ofelectronic devices, including alarm panels, electronic door locks, •Reduces development and per-unit costs by sharing existingcomponents in the OEM •Interoperable with all HID cardsand readers. •Offers Wiegand Data 1, Data0, and Clock and Data output •Provides output for a bi-colorLED. T H EM C M R E A D E R H A R D W A R E I N C L U D E S T H E F O L L O W I N GB A S I CF E A T U R E S : •Microcontroller•8 MHz ceramic resonator•128 byte EEPROM•FSK base-band receiver circuitry•Antenna exciter drive circuitry•External bicolor LED drive capability•External beeper drive capability Several functions are partitioned outside of the MCM Reader due to their size or powerdissipation requirements, or because existing electronic modules (i.e., alarm system keypadsand control panels) already incorporate these functions. The MCM User Manual includes full •Voltage regulator•Series resonant antenna circuit•Peak detection circuit•Transient surge protection•Sounder•LED’s for user feedback•Reset circuitry hidglobal.com
